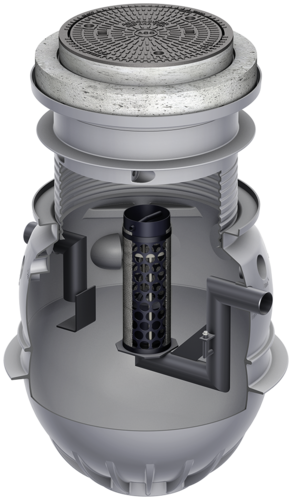

Oleopator P

Nominell kapacitetNominell breddInnehållViktArt.

nr
Nedladdningar
SlamfångOljetankTotalTotal
[l][l][l][kg]
NS 3DN 100450240775673903.80.00
670240995833913.80.00
9502401280843923.80.00
NS 6DN 150660235970913906.80.00
121023515251013916.80.00
NS 8DN 1508202601250943908.80.00
NS 10DN 150108026016151053910.80.00
Nominell kapacitetNominell breddInnehållViktArt.

nr
SlamfångOljetankTotalTotal
NS 3DN 100450 l240 l775 l67 kg3903.80.00
NS 3DN 100670 l240 l995 l83 kg3913.80.00
NS 3DN 100950 l240 l1.280 l84 kg3923.80.00
NS 6DN 150660 l235 l970 l91 kg3906.80.00
NS 6DN 1501.210 l235 l1.525 l101 kg3916.80.00
NS 8DN 150820 l260 l1.250 l94 kg3908.80.00
NS 10DN 1501.080 l260 l1.615 l105 kg3910.80.00
Skalritning
Nominell kapacitetInlopp/utlopp enligt DIN EN 877SlamfångDimensioner
DHH1H2
[l][mm][mm][mm][mm]
NS 3DN 100450110137710201000
NS 3DN 100670110159412301210
NS 3DN 100950110186515001480
NS 6DN 150660160159412101190
NS 6DN 1501210160212917401720
NS 8DN 150820160186514801460
NS 10DN 1501080160212917401720
