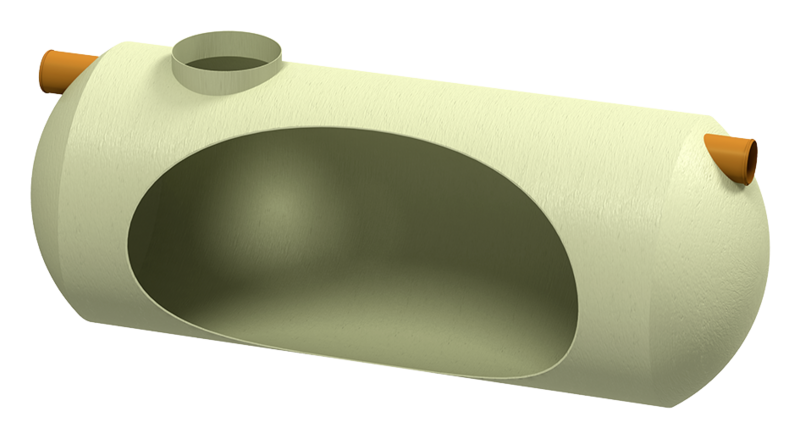

ACO Sludge Trap G-H

Inlopp/utlopp

DN
Nominell kapacitetInnehållViktArt.

nr
Nedladdningar
SlamfångTotal
[l][l][kg]
200NS 2003000303423812800.01
6500655937312801.01
250NS 250100001000149012802.01
150001500373412803.01
315NS 315200002015585912804.01
3000030260147012805.01
400NS 4004000040008191812806.01
5000050001208612807.01
7000071461289612808.01
Nominell kapacitetInnehållViktArt.

nr
SlamfångTotal
NS 2003.000 l3.034 l238,0 kg12800.01
NS 2006.500 l6.559 l373,0 kg12801.01
NS 25010.000 l10.001 l490,0 kg12802.01
NS 25015.000 l15.003 l734,0 kg12803.01
NS 31520.000 l20.155 l859,0 kg12804.01
NS 31530.000 l30.260 l1470,0 kg12805.01
NS 40040.000 l40.008 l1918,0 kg12806.01
NS 40050.000 l50.001 l2086,0 kg12807.01
NS 40070.000 l71.461 l2896,0 kg12808.01
Nominell kapacitetInlopp/utlopp enligt DIN EN 877Dimensioner
H1H2
[mm][mm]
NS 2002001030980
16301580
NS 25025015801530
18801830
NS 31531518151765
21402090
NS 40040020301980
40020301980
NS 40040022302180
