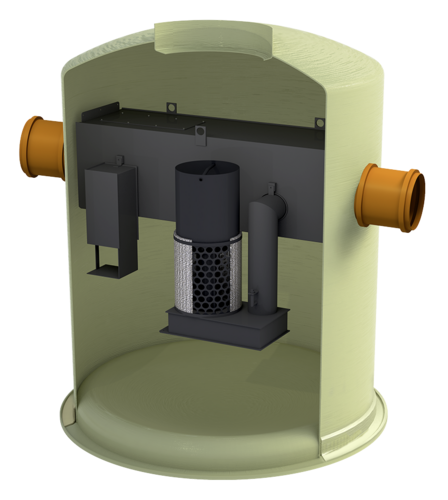

ACO Oleopator Bypass G

Inlopp/utlopp

DN
Nominell kapacitetInnehållViktArt.

nr
Nedladdningar
SlamfångOljetankTotal
[l][l][l][kg]
315NS 6600412137726012541.41
1200412190730012542.41
1800412290530512543.41
NS 8800412190726512544.41
1600412238429012545.41
2400412340932512546.41
400NS 101000412180130012547.41
2000412279932012548.41
3000412378036012549.41
NS 151500902352060012550.41
3000902473673012551.41
4500902623880012552.41
NS 2020001197473675012553.41
40001197739781012554.41
60001197899490012555.41
500NS 3030001473585879012556.41
60001473861490012557.41
9000147311617100012558.41
Nominell kapacitetInnehållViktArt.

nr
SlamfångOljetankTotal
NS 6600 l412 l1.377 l260,0 kg12541.41
NS 61.200 l412 l1.907 l300,0 kg12542.41
NS 61.800 l412 l2.905 l305,0 kg12543.41
NS 8800 l412 l1.907 l265,0 kg12544.41
NS 81.600 l412 l2.384 l290,0 kg12545.41
NS 82.400 l412 l3.409 l325,0 kg12546.41
NS 101.000 l412 l1.801 l300,0 kg12547.41
NS 102.000 l412 l2.799 l320,0 kg12548.41
NS 103.000 l412 l3.780 l360,0 kg12549.41
NS 151.500 l902 l3.520 l600,0 kg12550.41
NS 153.000 l902 l4.736 l730,0 kg12551.41
NS 154.500 l902 l6.238 l800,0 kg12552.41
NS 202.000 l1.197 l4.736 l750,0 kg12553.41
NS 204.000 l1.197 l7.397 l810,0 kg12554.41
NS 206.000 l1.197 l8.994 l900,0 kg12555.41
NS 303.000 l1.473 l5.858 l790,0 kg12556.41
NS 306.000 l1.473 l8.614 l900,0 kg12557.41
NS 309.000 l1.473 l11.617 l1000,0 kg12558.41
Nominell kapacitetInlopp/utlopp enligt DIN EN 877Dimensioner
H1H2
[mm][mm]
NS 6315860810
11601110
17251675
NS 831511601110
14301380
20101960
NS 1040011001050
16651615
22202170
NS 1540011201070
14401390
18351785
NS 2040014401390
21402090
25602510
NS 3050017351635
24602360
32503150
