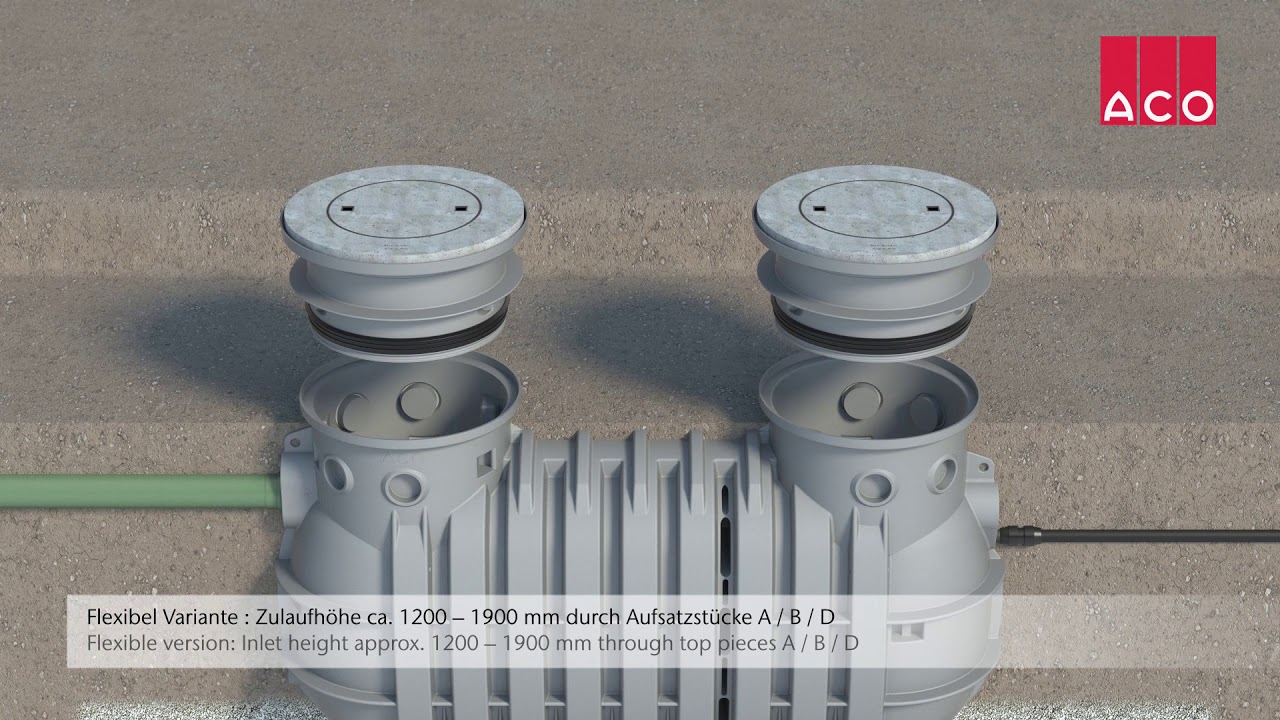

ACO LipuLift-PF-DA

Produktfördelar

  • Separator, sampling and pump station in one housing
  • No piping between the components necessary
  • Only one plant control
  • Optimal air exchange due to interruption of the partition wall between separator and pump station
  • High effective volume of the pumping station for low pump wear
  • Four comfort stages possible

Produktinformation

  • Grease separator according to EN 1825-1 made of polyethylene for underground installation with integrated dual pumping station according to EN 12050
  • Flexible version for variable inlet inverts
  • Two dome openings, each to accommodate a top section with covers according to either class A, B or D
  • Integrated pumping station according to EN 12050, accessible via the manhole cover
    • Pressure connection: 2 "- OD Ø 63 mm (PE pipe)
    • Ball backflow preventer
    • Voltage: 400 V, 50 Hz, speed: 2900 rpm
    • Protection class IP 68; Operating mode: 51
  • With a factory-prepared suction line made of PE-HD DN 65 (OD 75 mm), with Storz-B coupling and blind cover
  • With factory-prepared automatic high-pressure internal cleaning
  • Disposal, cleaning and refilling of the separator with closed covers
Nominell kapacitetInnehållArt.

nr
FettbehållareTotal
[l][l][l]
NS 459037012603204.30.31
NS 778055017603207.30.31
3207.30.32
NS 10101071022603210.30.32
3210.30.33
Nominell kapacitetArt.

nr
H1
[mm]
NS 43204.30.311125
NS 73207.30.311100
3207.30.321100
NS 103210.30.321100
3210.30.331100

199125

Beskrivning
  • Produktfördelar
    • Flexibelt montage
    • "Knock-out" för anslutningar
    • Lös monteringsram
  • Produkt information
    • Standardkoppling
    • Rostfri plåt AISI 304
    • Lås med trekantsnyckel
    • Enkelt att byta låscylinder till nyckelsystem
    • Med konsol på insida lucka för styrskåp
  • Vikt: 6 kg

20901

Beskrivning
  • Produktfördelar
    • Flexibelt montage
    • Passar standard markavloppsrör
    • Smådjurssäker
  • Produkt information
    • Standarddimensioner
    • Rostfritt stål AISI 304
    • Skyddsnät i övre böj
  • Vikt: 12 kg

20904

Beskrivning
  • Produktfördelar
    • Flexibelt montage
    • Passar standard markavloppsrör
    • Smådjurssäker
  • Produkt information
    • Standarddimensioner
    • Rostfritt stål AISI 304
    • Skyddsnät i övre böj
  • Vikt: 15 kg

20907

Beskrivning
  • Produktfördelar
    • Flexibelt montage
    • Passar standard markavloppsrör
    • Smådjurssäker
  • Produkt information
    • Standarddimensioner
    • Rostfritt stål AISI 304
    • Skyddsnät i övre böj
  • Vikt: 20 kg

Signaleringsenhet

Passar till
  • Quatrix-K typ 3F automatiskt bakvattenventil
  • Alla Muli avloppspumpstationer
  • Förinstallation i container mono/duo
  • Muli-Max
  • Sinkamat –K/-KD
  • Sinkamat-Z
  • Sinkamat-Z (undergolv)
    • Duo
Beskrivning
  • Självladdande
  • Med potentialfri kontakt
  • Synlig och hörbar
  • Utan Kontaktregulator
  • För montering utanför Ex-klassat område
  • Hus: 125 x 175 x 75 mm
  • Kapslingsklass: IP65
  • Driftsspänning: 230 V/AC 50/60 Hz
  • Färdigkopplad med kabel: 2 m
  • Vikt: 1,4 kg

Signalhorn

Beskrivning
  • 230V AC
  • Strömförbrukning: 30mA
  • Ø62x85 mm (L/B x T)
  • Kapsling: IP66
  • 95 dB(A)
  • Vikt: 0,3 kg

Signalhorn

Beskrivning
  • Vikt: 0,2 kg

Blixtljus

Beskrivning
  • Vikt: 0,5 kg

Blixtljus


Tvättslang 1 SN 10 – 150 DKO/DKO-L-90°

Passar till
  • Fettavskiljare för markinstallation
    • LipuMax-P-DM
    • LipuMax-P-DA
  • Stärkelseavskiljare FapuMax-P-DA för markinstallation
  • LipuLift-P-DA/-DAP
Beskrivning
  • För anslutning av en högtryckspump i byggnaden och ett högtrycksrengöringshuvud i fettavskiljare
  • Vikt: 10 kg

Tvättslang 1 SN 10 – 150 DKO/DKO-L-90°

Passar till
  • Fettavskiljare för markinstallation
    • LipuMax-P-DM
    • LipuMax-P-DA
  • Stärkelseavskiljare FapuMax-P-DA för markinstallation
  • LipuLift-P-DA/-DAP
Beskrivning
  • För anslutning av en högtryckspump i byggnaden och ett högtrycksrengöringshuvud i fettavskiljare
  • Vikt: 10,3 kg

Tvättslang 1 SN 10 – 150 DKO/DKO-L-90°

Passar till
  • Fettavskiljare för markinstallation
    • LipuMax-P-DM
    • LipuMax-P-DA
  • Stärkelseavskiljare FapuMax-P-DA för markinstallation
  • LipuLift-P-DA/-DAP
Beskrivning
  • För anslutning av en högtryckspump i byggnaden och ett högtrycksrengöringshuvud i fettavskiljare
  • Vikt: 19 kg
