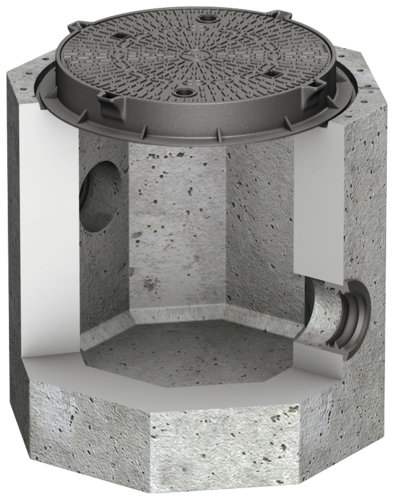

Provtagningsbrunn

Inlopp/utlopp DN/OD	Installationsdjup	Total vikt	Art. nr	Nedladdningar
[mm]	[mm]	[kg]	Art. nr	Nedladdningar
Gradient: 160 mm
110	705	2000	725050
160	730	2000	725051
200	875	2000	725052
250	860	2000	725053
315	880	2000	725054
Gradient: 30 mm
110	675	2000	725055
160	700	2000	725056
200	845	2000	725057
250	850	2000	725058
315	850	2000	725059

Skalritning

Inlopp/utlopp DN/OD	Art. nr	Dimensioner
Inlopp/utlopp DN/OD		H1	D1	D2	D
[mm]		[mm]	[mm]	[mm]	[mm]
110	725050	335	1000	1320	705
160	725051	310	1000	1320	730
200	725052	315	1000	1320	875
250	725053	330	1000	1320	860
315	725054	310	1000	1320	880
110	725055	365	1000	1320	675
160	725056	340	1000	1320	700
200	725057	350	1000	1320	845
250	725058	340	1000	1320	850
315	725059	340	1000	1320	850
